| Model | HP | 50Hz | 60Hz | |||||||
| Displacement | Capacity | COP | Capacity | COP | ||||||
| (c㎡/rev) | kW | kBTU/h | W/W | kBTU/h | kW | kBTU/h | W/W | kBTU/h | ||
| C-SB263H8A | 3.5 | 55.7 | 9.6 | 32.8 | 3.1 | 10.6 | 11.8 | 40.3 | 3.2 | 10.9 |
| C-SB303H8A | 4.0 | 66.8 | 1.8 | 40.3 | 3.2 | 11.0 | 14.4 | 49.2 | 3.3 | 11.2 |
| C-SB353H8A | 4.6 | 77.4 | 13.5 | 46.1 | 3.2 | 10.9 | 16.7 | 57.0 | 3.3 | 11.2 |
| C-SB373H8A | 5.0 | 83.2 | 14.5 | 49.5 | 3.2 | 10.9 | 17.9 | 61.1 | 3.2 | 11.0 |
| C-SB373H8G | 5.0 | 83.2 | 14.5 | 49.5 | 3.2 | 10.9 | 17.9 | 61.1 | 3.2 | 11.0 |
| C-SB453H8A | 6.0 | 100.0 | 17.7 | 60.4 | 3.3 | 11.1 | 21.5 | 73.4 | 3.2 | 11.1 |
| C-SB453H8G | 6.0 | 100.0 | 17.7 | 60.4 | 3.3 | 11.1 | 21.5 | 73.4 | 3.2 | 11.1 |
| C-SBR235H38A | 7.0 | 110.2 | 19.2 | 65.6 | 3.2 | 10.9 | 23.2 | 79.2 | 3.3 | 11.2 |
| C-SC603H8K | 8.0 | 137.0 | 24.5 | 83.6 | 3.3 | 11.3 | 29.6 | 101.1 | 3.3 | 11.2 |
| C-SC753H8H | 10.0 | 171.2 | 30.6 | 104.5 | 3.4 | 11.5 | 36.9 | 126.0 | 3.3 | 11.3 |
| C-SC753H8K | 10.0 | 171.2 | 30.6 | 104.5 | 3.4 | 11.5 | 36.9 | 126.0 | 3.3 | 11.3 |
| C-SC903H8H | 12.0 | 205.4 | 36.1 | 123.3 | 3.3 | 11.3 | / | / | / | / |
| C-SC903H8K | 12.0 | 205.4 | 36.1 | 123.3 | 3.3 | 11.3 | / | / | / | / |

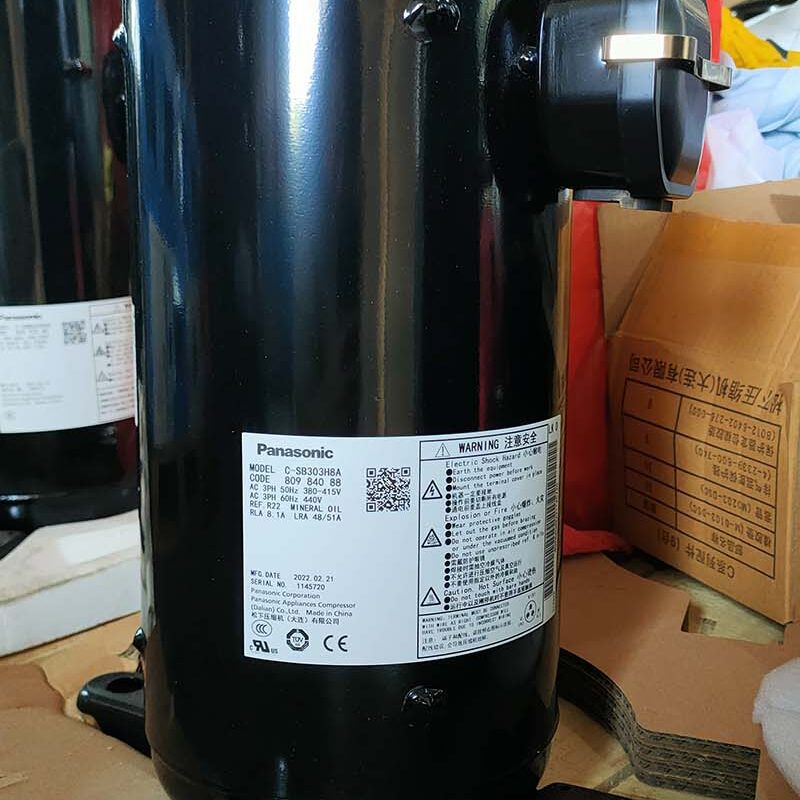

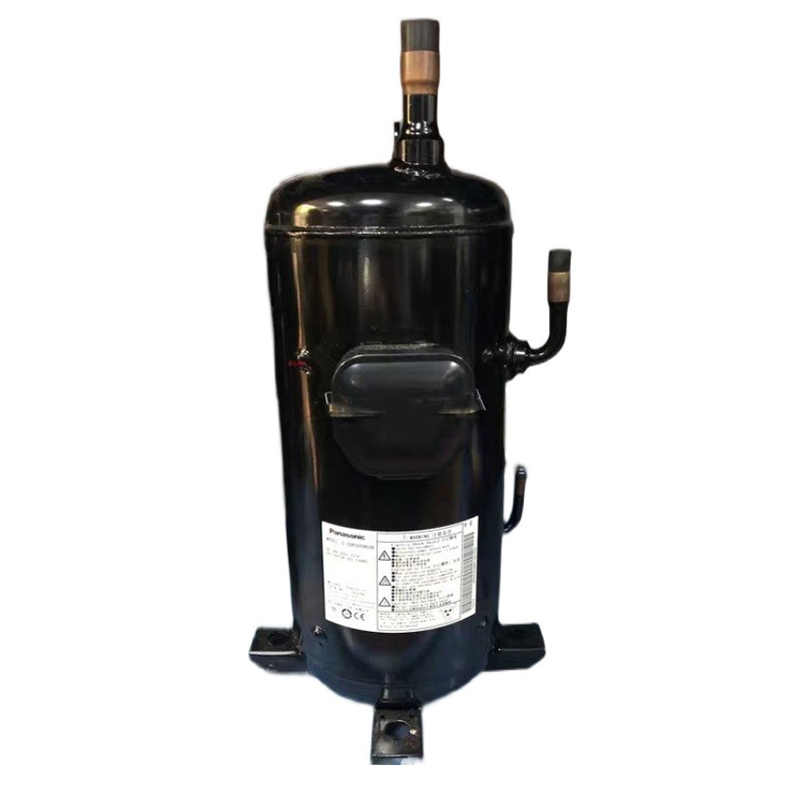

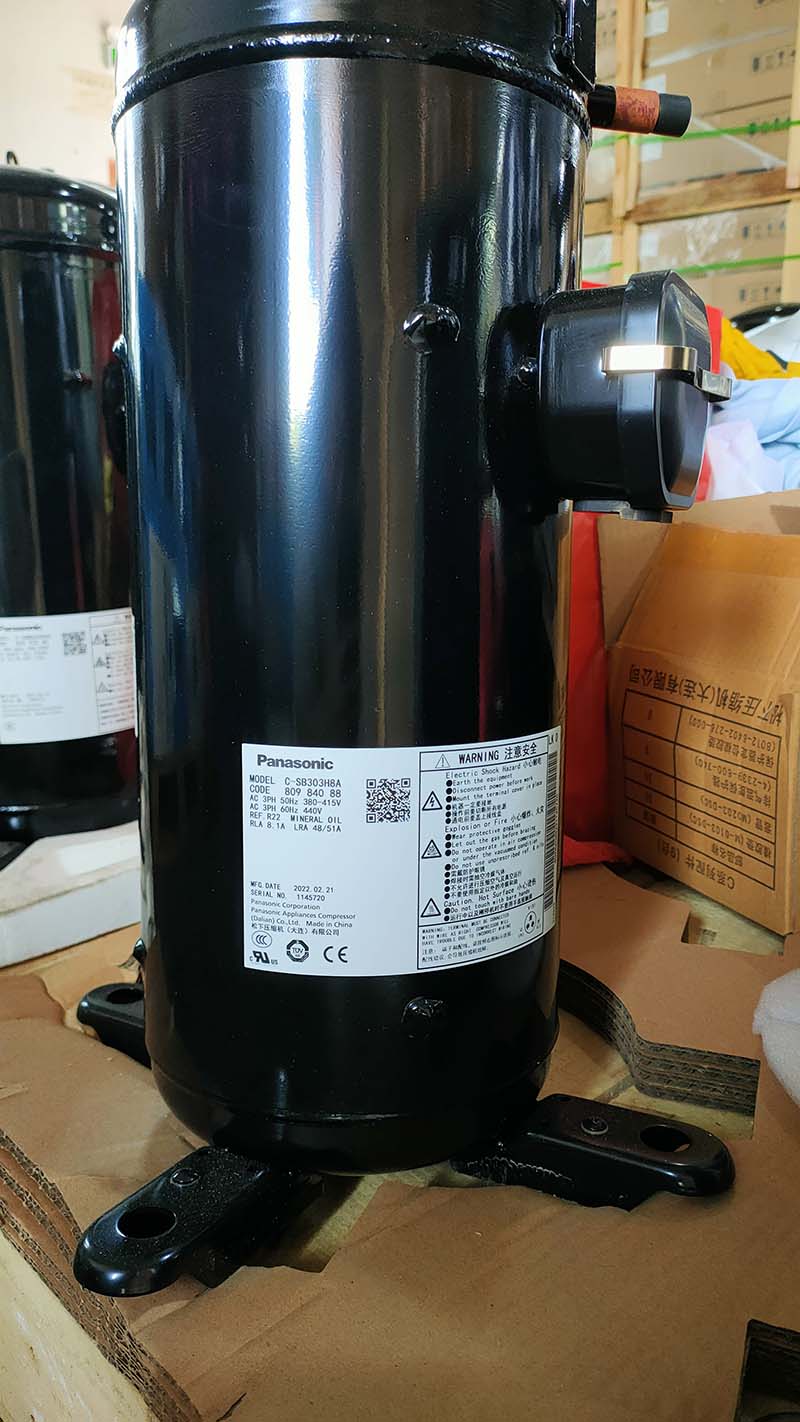

C-SB303H8A 4HP Panasonic Refrigeration Scroll Compressor
| Model | C-SB303H8A | ||
| HP | 4.0 | ||
| Displacement | (c㎡/rev) | 66.8 | |
| 50Hz | Capacity | kW | 1.8 |
| kBTU/h | 40.3 | ||
| COP | W/W | 3.2 | |
| kBTU/h | 11.0 | ||
| 60Hz | Capacity | kW | 14.4 |
| kBTU/h | 49.2 | ||
| COP | W/W | 3.3 | |
| kBTU/h | 11.2 | ||
